AISC Steel Construction Manual · Shapes Database

The American steel
handbook, on your phone.

Every hot-rolled wide-flange, channel, angle and tee section from the AISC shapes database - dimensions and sectional properties, structured for fast lookup during steel design, on site, or at your desk. No signal required.

Get it on Google Play See what's covered
WMSHPC MCL - EqualL - UnequalWT / MT / STHSS - Rect HSS - RoundPipe
See it in action

The full lookup, right on your screen.

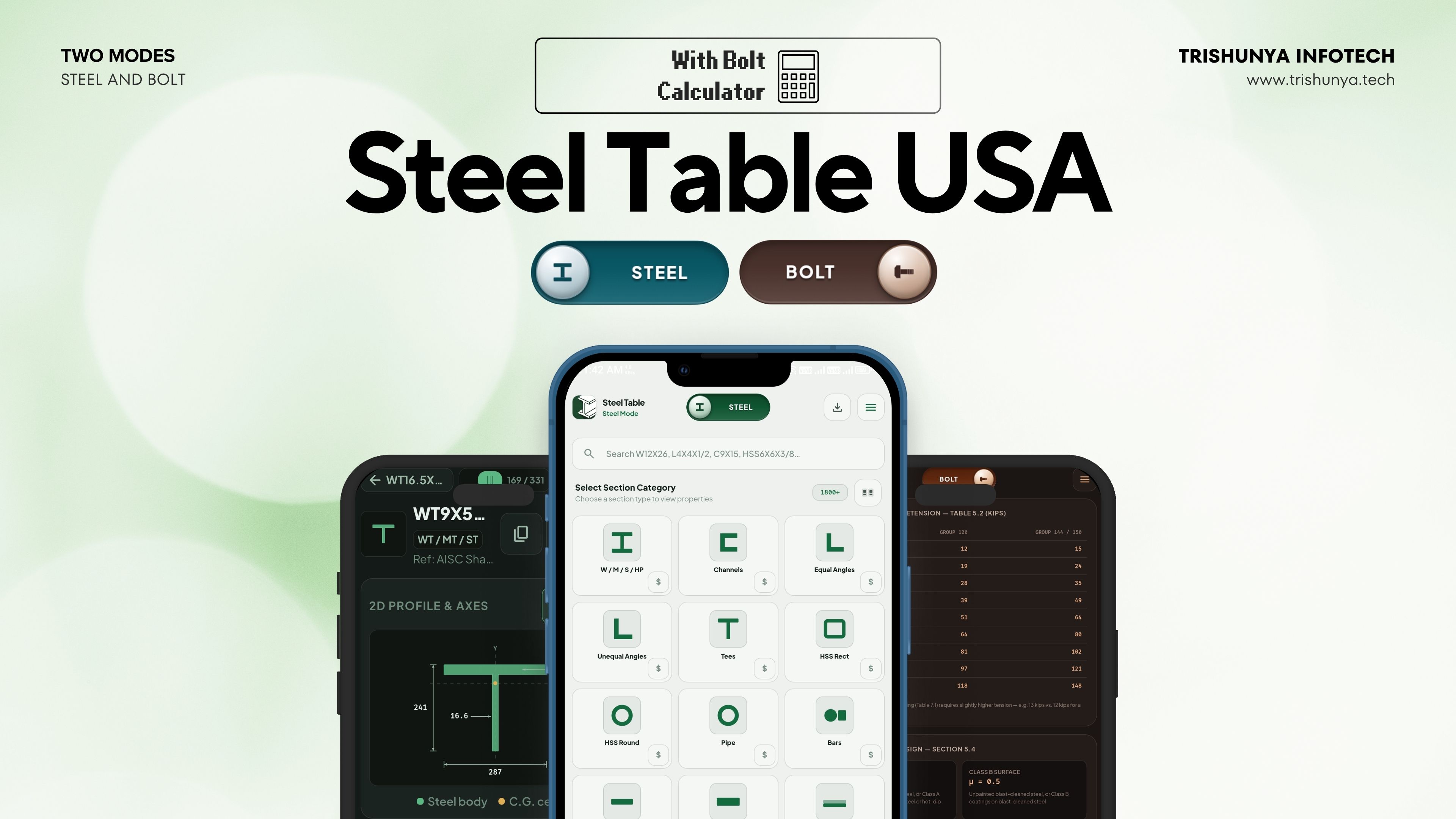

Steel Table USA - cover

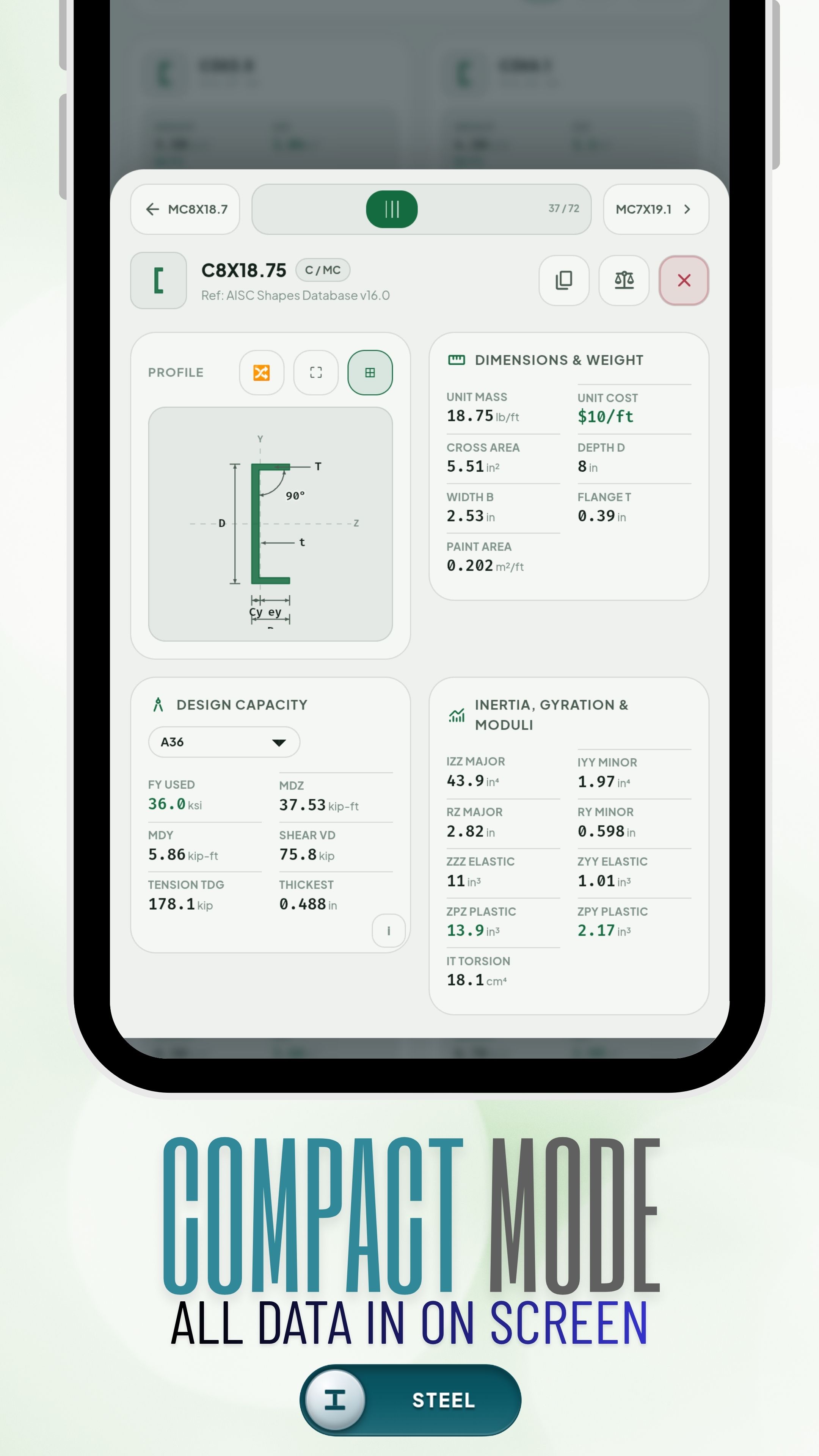

Steel Table USA screenshot 3

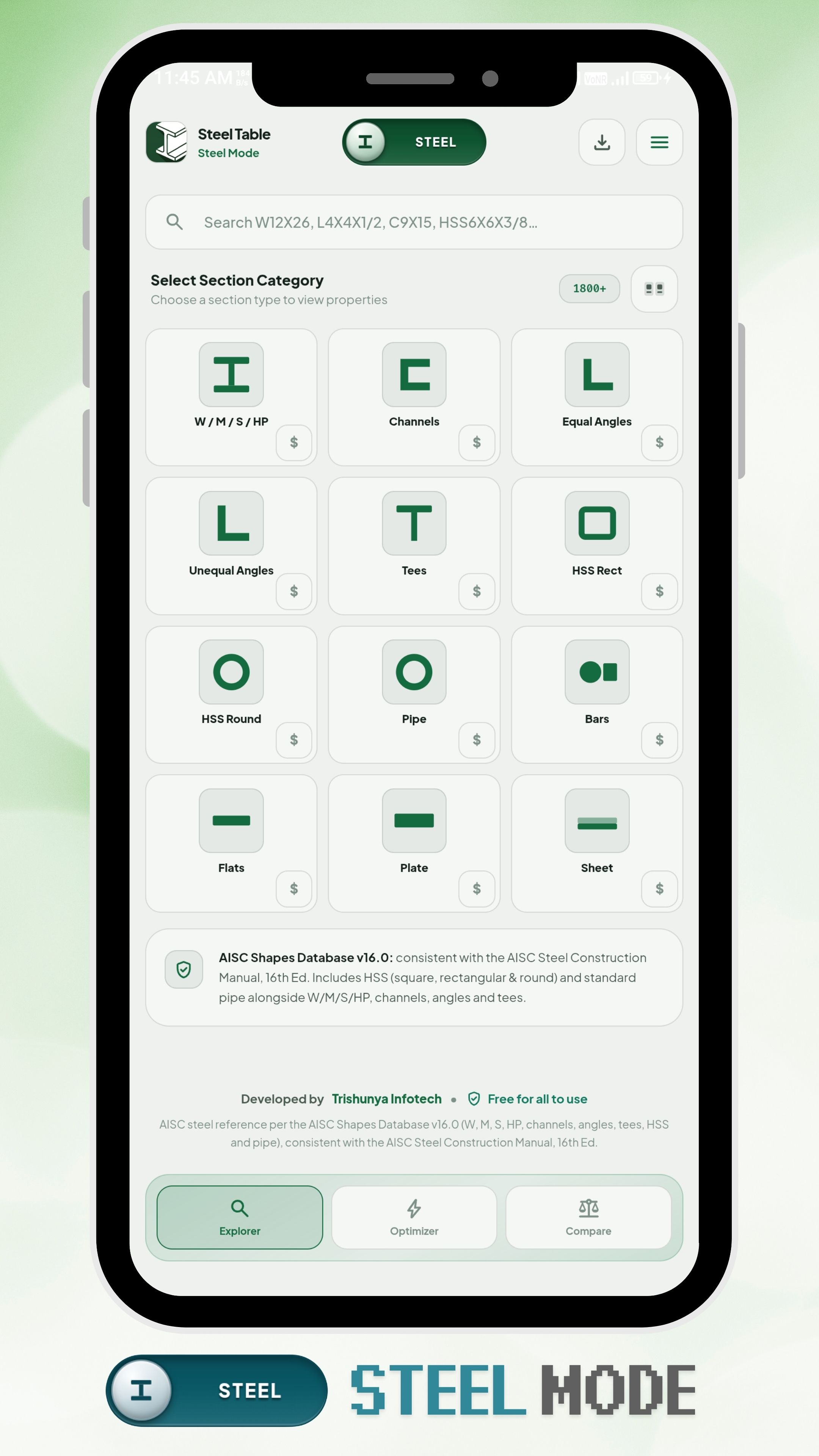

Steel Table USA screenshot 4

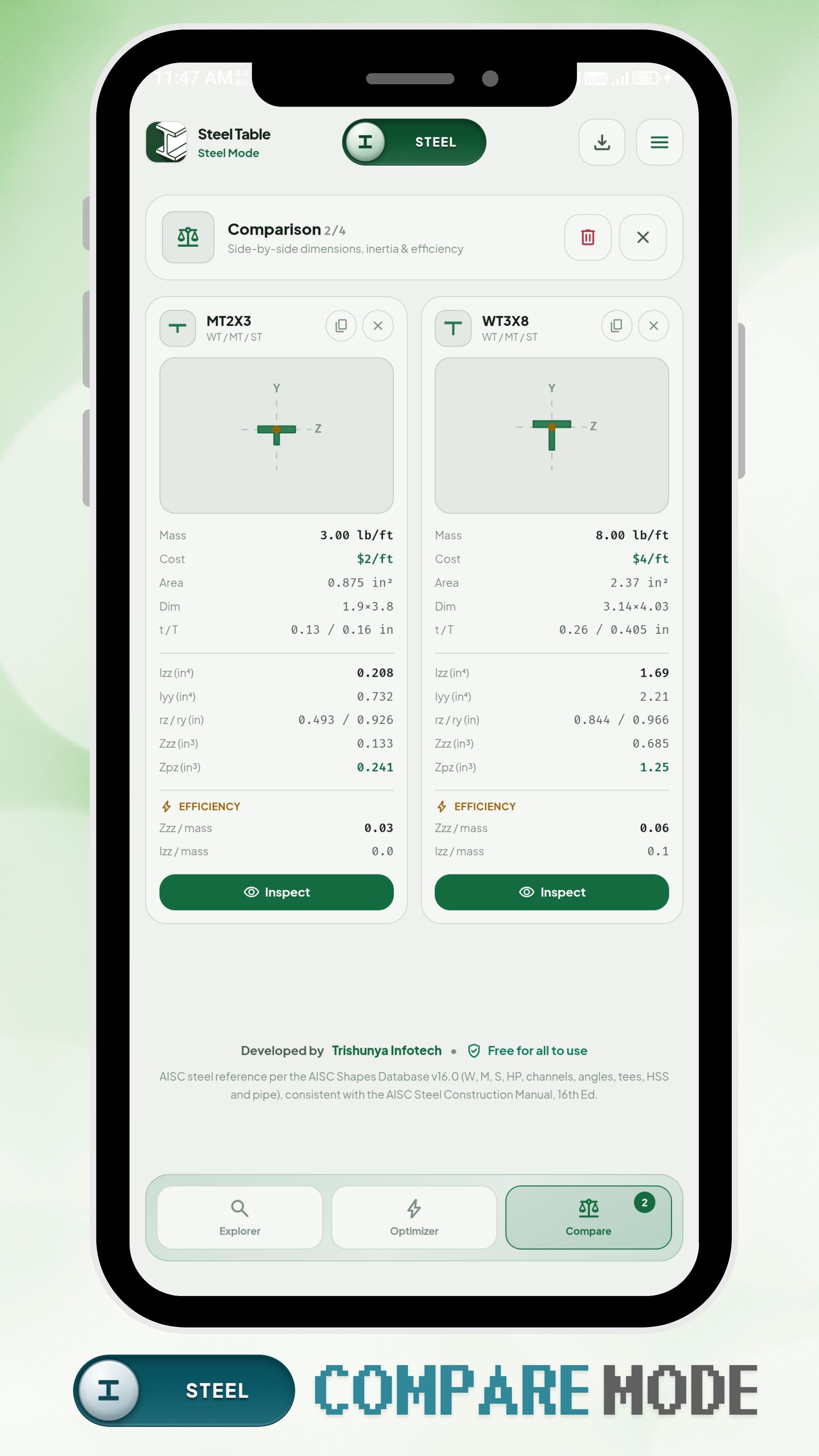

Steel Table USA screenshot 5

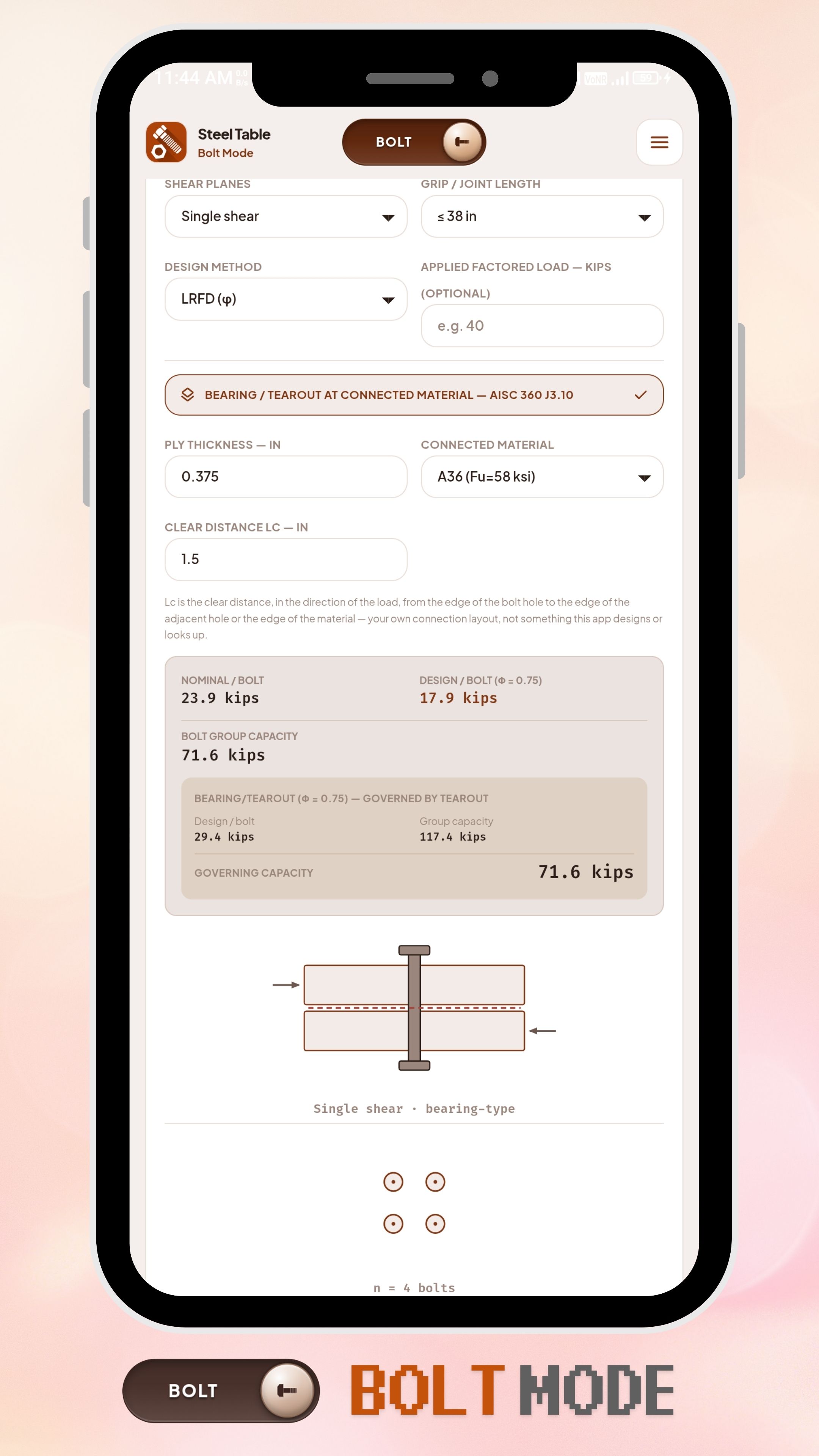

Steel Table USA screenshot 6

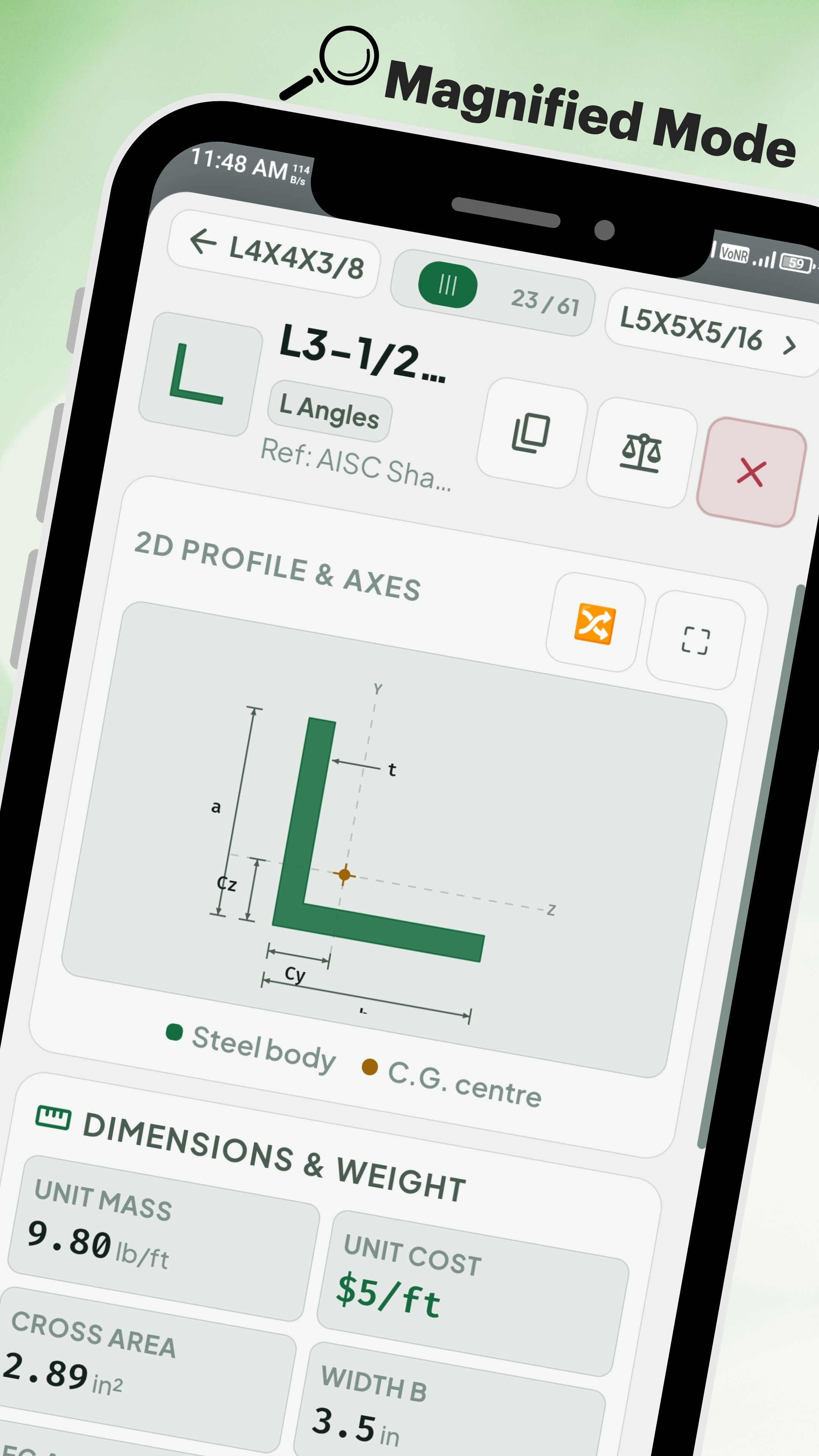

Steel Table USA screenshot 7

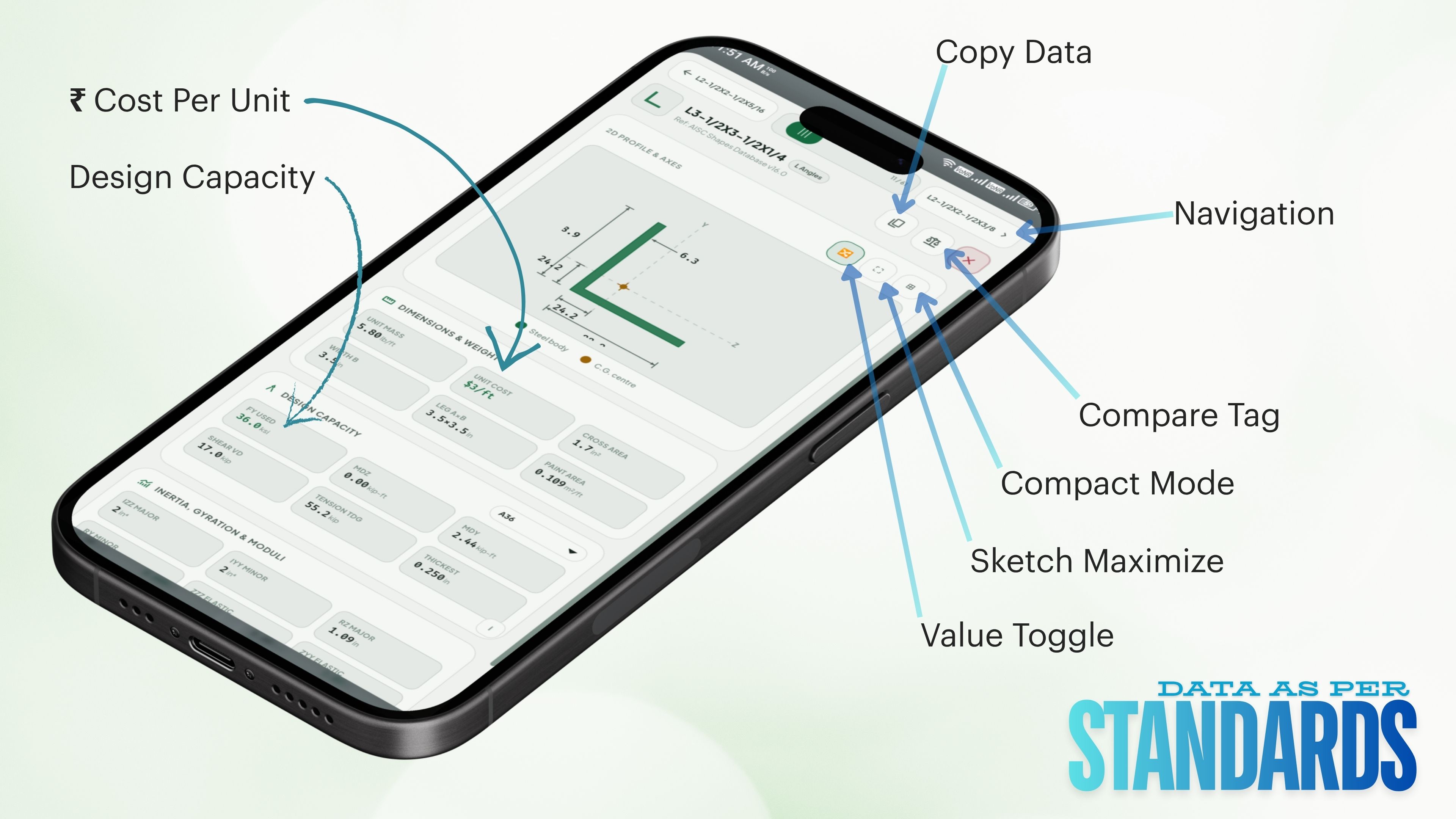

Steel Table USA screenshot 8

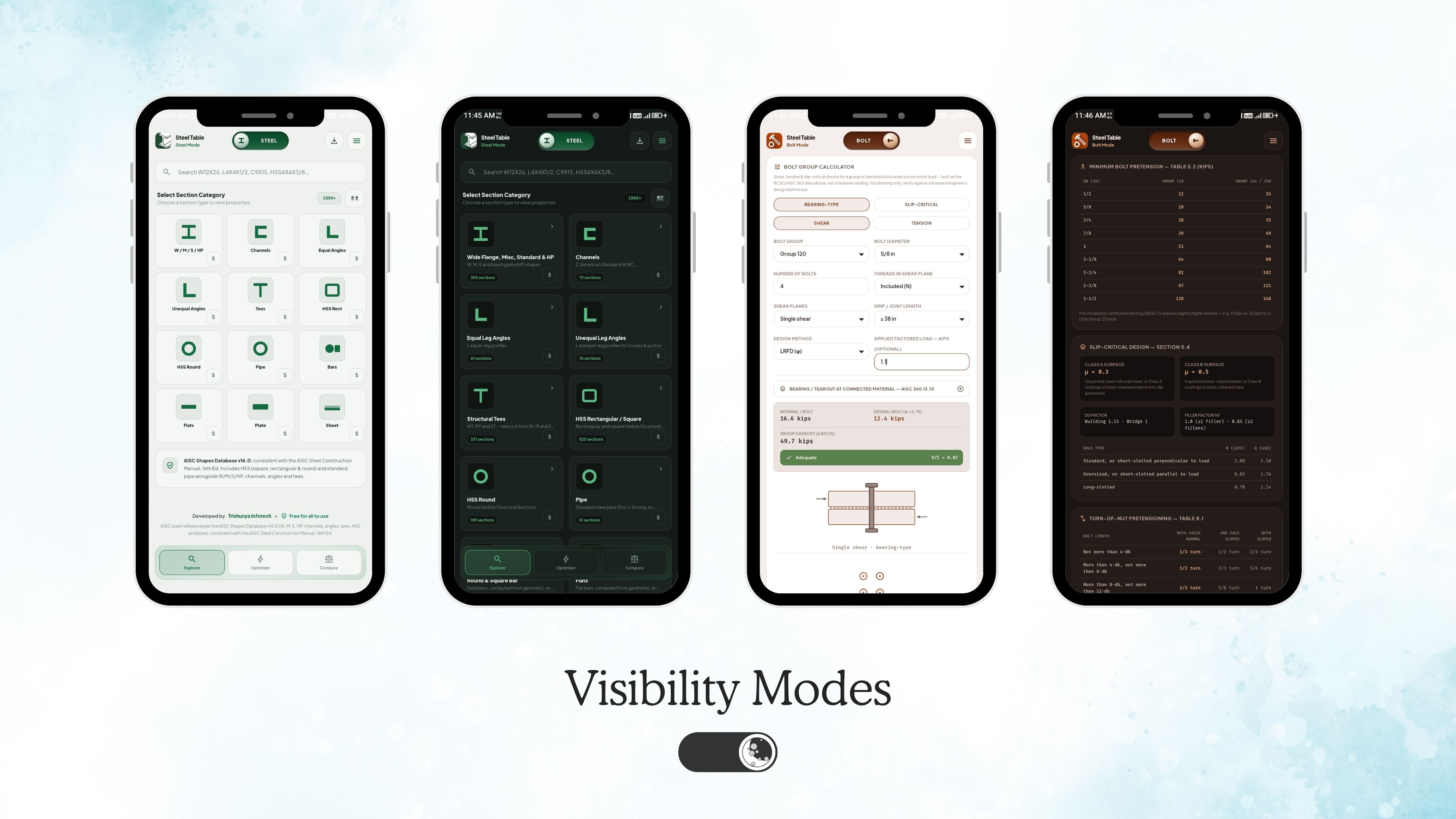

Steel Table USA screenshot 9

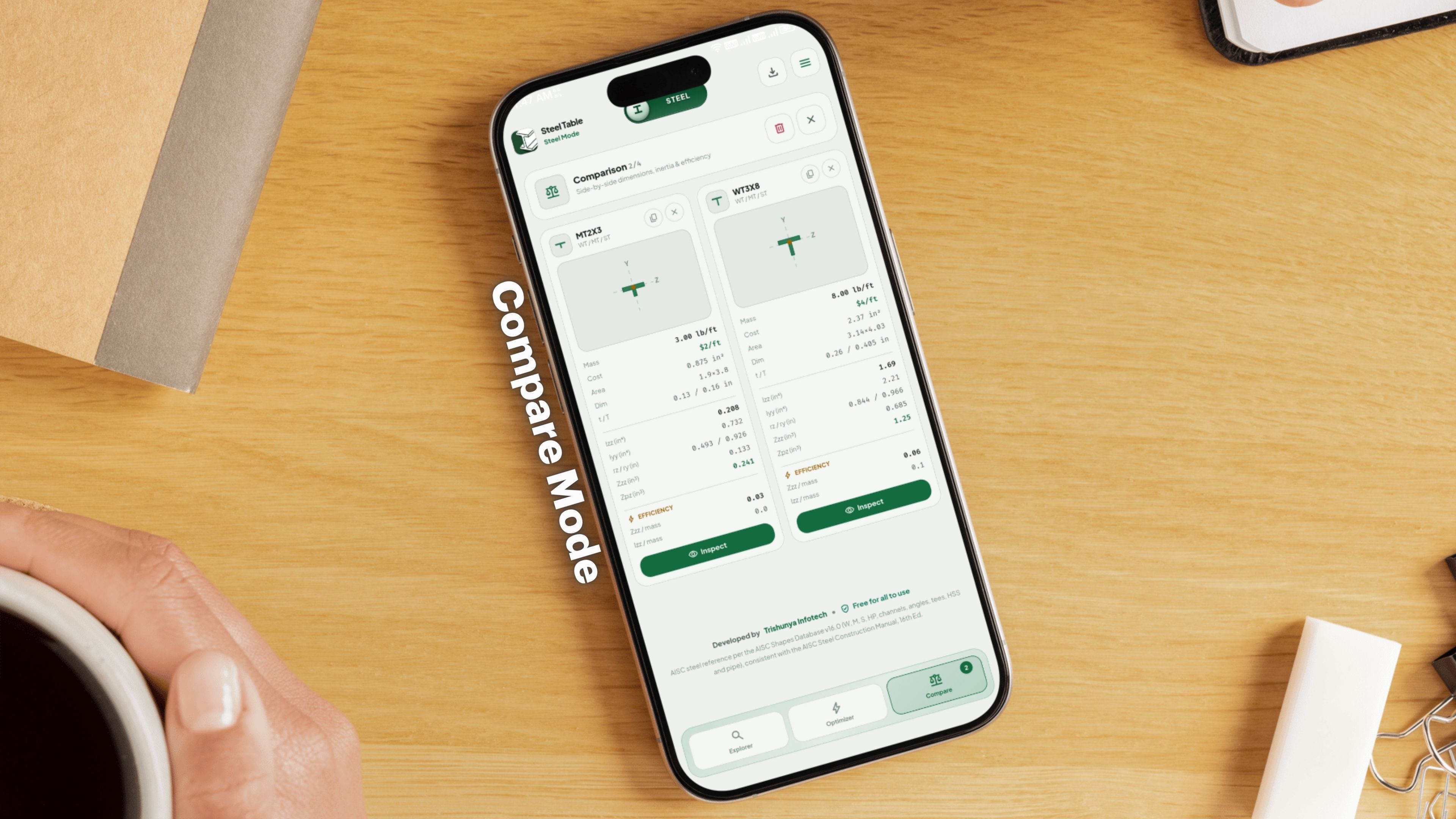

Steel Table USA screenshot 10
Coverage

Every section family in the manual, indexed and searchable.

Sourced directly from the AISC shapes database - designation, weight, area, all axis dimensions, moments of inertia, radii of gyration, elastic and plastic section moduli.

W
Wide Flange Shapes
M
Miscellaneous Beams
S
American Standard Beams
HP
Bearing Piles
C
American Standard Channels
MC
Miscellaneous Channels
L - Equal
Equal Leg Angles
L - Unequal
Unequal Leg Angles
WT / MT / ST
Structural Tees
HSS - Rect
Square & Rectangular Hollow Sections
HSS - Round / Pipe
Round Hollow Sections & Pipe
+ more
Growing with every update
Why it's built this way

Made for the way structural engineers check a section mid-design.

Instant lookup

Search by designation and get every dimension and property on one screen - no scrolling through a PDF.

Works offline

The full dataset lives on your device. Check a section on site with no signal at all.

Weight & cost estimates

Turn a section and a length into weight and an approximate material cost - a quick sanity check before you commit to a design.

⚠ For reference, not for sign-off

Steel Table USA is a fast reference tool. Every value is transcribed from publicly available AISC shapes data, but transcription can contain errors. Always verify critical dimensions and properties against the current official AISC Steel Construction Manual before using them in a real design, drawing, or structural calculation. Trishunya Infotech is not liable for outcomes resulting from reliance on data in this app - see the Terms of Use for the full disclaimer. The AISC Steel Construction Manual and its shapes database are published by, and remain the property of, the American Institute of Steel Construction (AISC) - Trishunya Infotech does not claim any ownership or official authority over this standard. All data compiled in this app comes from publicly available information.

Built for the design table

Steel Table USA exists for one moment: mid-design, needing a section's exact dimensions or properties without hunting through a PDF. Built solo by Trishunya Infotech, kept free wherever we can, and made to be genuinely useful for structural engineers doing steel design.
